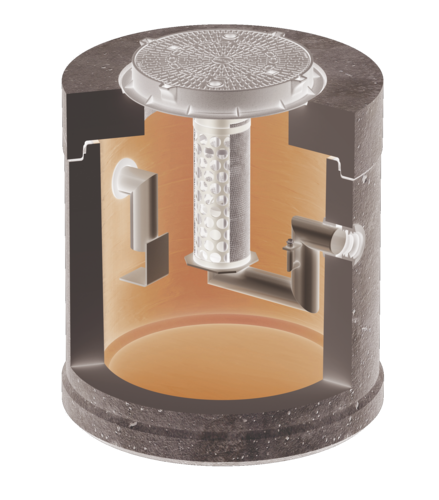

Oleopator met coalescentiescherm

productvoordelen

Ruime keuze in t/m NG50-5000 in één bekken geïntegreerd
Compacte bouw door combinatie van slibvang en olieafscheider gecombineerd in één bekken. Dit resulteert in lagere plaatsingskosten.
Groot olie-opslagvolume en hydraulisch geteste slibvang
Een hoog afscheidingsrendement, standaard Klasse I
Geringe aansluitdiepte
Coalescentiefilter en grofvuilfilter zijn eenvoudig te verwijderen bij onderhoud en lediging
Belastingklasse standard D400 volgens NEN-EN 124
KOMO gecertificeerd

nominale grootte	aansluit diameter Ø	Slib volume	T1 min.	T2 max.	gewicht	totale- volumes	gewicht afzonderlijk deel	olie volume	hoogte C	oliesensor	opstuwsensor	artikelnr.	downloads	Onthouden
nominale grootte	[mm]	[l]	[mm]	[mm]	[kg]	[l]	[kg]	[l]	[mm]	[mm]	[mm]	artikelnr.	downloads	Onthouden
NS 1,5	110		725	5360	2107,0	450	1468,0	163	785	512	868	OLC.1.5.0000D
		150	725	5360	2107,0	450	1468,0	163	790	512	868	OLC.1.5.0150D
		300	715	5350	2404,0	750	1765,0	163	1120	847	1203	OLC.1.5.0300D
NS 3	110		725	5360	2107,0	450	1468,0	163	785	512	868	OLC.03.0000D
		300	715	5350	2404,0	750	1765,0	163	1120	847	1203	OLC.03.0300D
		600	750	5385	2918,0	930	2279,0	163	1360	1077	1433	OLC.03.0600D
		900	745	5380	3805,0	1490	2893,0	464	1480	1092	1584	OLC.03.0900D
NS 4	160		730	5365	2120,0	470	1481,0	160	785	509	878	OLC.04.0000D
		400	740	5375	2408,0	740	1769,0	160	1095	819	1188	OLC.04.0400D
		800	705	5340	3801,0	1530	2889,0	512	1520	1110	1646	OLC.04.0800D
		1200	720	5340	3800,0	1530	2888,0	236	1520	1234	1603	OLC.04.1200D
NS 6	160		730	5365	2120,0	470	1481,0	160	785	509	878	OLC.06.0000D
		600	775	5410	2926,0	910	2287,0	160	1335	1049	1418	OLC.06.0600D
		1200	705	5340	3800,0	1530	2888,0	236	1520	1234	1603	OLC.06.1200D
		1800	720	5355	5758,0	2650	4397,0	576	1640	1322	1769	OLC.06.1800D
		5000	800	5385	9815,0	6480	6943,0	1272	1925	1532	1979	OLC.06.5000D
NS 8	160		730	5365	2121,0	470	1482,0	185	785	491	938	OLC.08.0000D
		800	765	5400	5223,0	1520	3862,0	273	1150	807	1335	OLC.08.0800D
		1600	720	5355	5356,0	2300	3995,0	576	1440	1127	1655	OLC.08.1600D
		2400	730	5365	5581,0	3240	4220,0	576	2005	1657	2185	OLC.08.2400D
		5000	800	5385	9816,0	6480	6944,0	1272	1925	1532	2060	OLC.08.5000D
NS 10	160		730	5365	2121,0	470	1482,0	185	785	491	938	OLC.10.0000D
		1000	705	5340	3801,0	1510	2889,0	273	1520	1239	1703	OLC.10.1000D
		2000	685	5320	5759,0	2700	4398,0	576	1675	1362	1890	OLC.10.2000D
		3000	725	5360	6137,0	3790	4776,0	576	2340	1997	2525	OLC.10.3000D
		5000	800	5385	9816,0	6480	6944,0	1272	1925	1532	2060	OLC.10.5000D
NS 15	200		810	5305	5228,0	1550	3870,0	464	1105	819	1251	OLC.15.0000D
		1500	740	5375	4763,0	2440	4405,0	464	1620	1339	1796	OLC.15.1500D
		3000	795	5430	6141,0	4620	4783,0	1163	2270	1959	2416	OLC.15.3000D
		5000	800	5385	10024,0	6970	7152,0	1163	2055	1676	2177	OLC.15.5000D
NS 20	200		810	5445	5237,0	1550	3879,0	594	1105	752	1349	OLC.20.0000D
		2000	755	5390	5604,0	3200	4243,0	594	1980	1627	2224	OLC.20.2000D
		4000	755	5340	9194,0	5630	6322,0	1163	1700	1321	1877	OLC.20.4000D
		5000	800	5385	10025,0	6970	7153,0	1163	2055	1676	2232	OLC.20.5000D
		6000	860	5445	10631,0	6730	7759,0	1163	2255	1876	2432	OLC.20.6000D
NS 30	250		800	5470	5090,0	1520	3902,0	654	1080	695	1328	OLC.30.0000D
		3000	830	5415	9562,0	5530	6690,0	1513	1760	1325	1960	OLC.30.3000D
		5000	885	5470	10671,0	7630	7799,0	1513	2230	1795	2430	OLC.30.5000D
		6000	855	5440	11375,0	8460	8503,0	1513	2440	2005	2640	OLC.30.6000D
NS 40	315		925	5570	8369,0	3760	5867,0	1350	1210	795	1527	OLC.40.0000D
		4000	925	5570	10308,0	6940	7806,0	1350	2130	1825	2448	OLC.40.4000D
		5000	905	5525	10508,0	7930	8006,0	1350	2305	2000	2623	OLC.40.5000D
NS 50	315		950	5570	8369,0	3760	5867,0	1350	1210	795	1548	OLC.50.0000D
NS 50	315	5000	905	5525	10508,0	7930	8006,0	1350	2305	2000	2643	OLC.50.5000D
NS 65	315		990		9297,0	4600	6462,0	1674	1430	970	1786	OLC.65.0000D
NS 80	400		1010		10188,0	6050	7353,0	2216	1810	1252	2133	OLC.80.0000D
NS 100	400		1050		11034,0	7425	8199,0	2216	2160	1607	2629	OLC.100.0000D

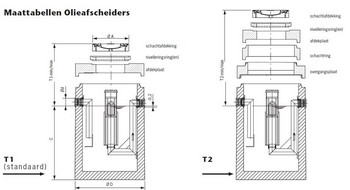

nominale grootte	aansluit diameter Ø	T1 min.	T1 max.	T2 min.	T2 max.	diameter	schachtafdekking
nominale grootte	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
NS 1,5	110	725	960	725	5360	1270	600
NS 1,5	110	715	950	715	5350	1270	600
NS 3	110	725	960	725	5360	1270	600
		715	950	715	5350	1270	600
		750	985	750	5385	1270	600
		745	980	745	5380	1475	600
NS 4	160	730	965	730	5365	1270	600
		740	975	740	5375	1270	600
		705	975	970	5340	1475	600
		720	1205	970	5340	1475	600
NS 6	160	730	965	730	5365	1270	600
		775	1010	775	5410	1270	600
		705	940	970	5340	1475	600
		720	955	1070	5355	1820	600
		800	985	1145	5385	2440	600
NS 8	160	730	965	730	5365	1270	600
		765	1000	1115	5400	1740	600
		720	955	1070	5355	1820	600
		730	965	1080	5365	1740	600
		800	985	1145	5385	2440	600
NS 10	160	730	965	730	5365	1270	600
		705	940	970	5340	1475	600
		685	920	1035	5320	1820	600
		725	960	1075	5360	1740	600
		800	985	1145	5385	2440	600
NS 15	200	810	1045	1155	5305	1740	600
		740	975	1090	5375	1820	600
		795	1030	1145	5430	1740	600
		800	985	1145	5385	2440	600
NS 20	200	810	1045	1155	5445	1740	600
		755	990	1105	5390	1740	600
		755	940	1100	5340	2440	600
		800	985	1145	5385	2440	600
		860	1045	1205	5445	2440	600
NS 30	250	800	3470	1145	5470	1740	800
		830	1015	1175	5415	2440	600
		885	1070	1230	5470	2440	600
		855	1040	1200	5440	2440	600
NS 40	315	925	3570	1295	5570	2440	800
		925	3570	1355	5570	2440	800
		905	3525	1310	5525	2440	800
NS 50	315	950	3570	1295	5570	2440	800
NS 50	315	905	3525	1310	5525	2440	800
NS 65	315	990	3610			2440
NS 80	400	1010	3630			2440
NS 100	400	1050	3670			2440
