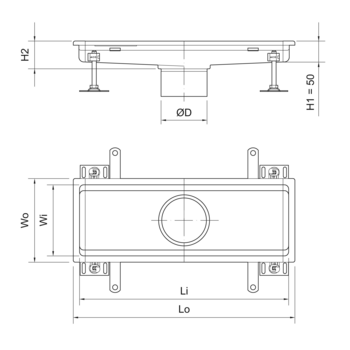

Channel dimensions						Compatible with gully	materiaal	artikelnr.
Wo	Wi	Lo	Li	H2	D
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
200	170	530	500	60	142	ACO hygienic gully 157	1.4301	416590
200	170	830	800	60	142	ACO hygienic gully 157	1.4301	416591
200	170	1030	1000	60	142	ACO hygienic gully 157	1.4301	416592
200	170	1230	1200	60	142	ACO hygienic gully 157	1.4301	416593
200	170	1530	1500	60	142	ACO hygienic gully 157	1.4301	416594
200	170	2030	2000	60	142	ACO hygienic gully 157	1.4301	416595
300	270	330	300	55	142	ACO hygienic gully 157	1.4301	416614
300	270	630	600	60	142	ACO hygienic gully 157	1.4301	416615
300	270	630	600	60	142	ACO hygienic gully 157	1.4404	416629
300	270	1030	1000	60	142	ACO hygienic gully 157	1.4301	416616
300	270	1530	1500	60	142	ACO hygienic gully 157	1.4301	416617
300	270	2030	2000	60	142	ACO hygienic gully 157	1.4301	416618
300	270	3030	3000	70	142	ACO hygienic gully 157	1.4301	416619
300	270	4030	4000	80	142	ACO hygienic gully 157	1.4301	416620
400	370	430	400	60	142	ACO hygienic gully 157	1.4301	416642
400	370	630	600	60	142	ACO hygienic gully 157	1.4301	416643
400	370	830	800	60	142	ACO hygienic gully 157	1.4301	416644
500	470	530	500	65	142	ACO hygienic gully 157	1.4301	416654
500	470	830	800	65	142	ACO hygienic gully 157	1.4301	416655
500	470	1030	1000	65	142	ACO hygienic gully 157	1.4301	416656
300	270	330	300	55	200	ACO hygienic gully 218	1.4301	416621
300	270	630	600	60	200	ACO hygienic gully 218	1.4301	416622
300	270	1030	1000	60	200	ACO hygienic gully 218	1.4301	416623
300	270	1530	1500	60	200	ACO hygienic gully 218	1.4301	416624
300	270	2030	2000	60	200	ACO hygienic gully 218	1.4301	416625
300	270	3030	3000	70	200	ACO hygienic gully 218	1.4301	416626
300	270	4030	4000	80	200	ACO hygienic gully 218	1.4301	416627
400	370	430	400	60	200	ACO hygienic gully 218	1.4301	416645
400	370	630	600	60	200	ACO hygienic gully 218	1.4301	416646
400	370	830	800	60	200	ACO hygienic gully 218	1.4301	416647
500	470	530	500	65	200	ACO hygienic gully 218	1.4301	416657
500	470	830	800	65	200	ACO hygienic gully 218	1.4301	416658
500	470	1030	1000	65	200	ACO hygienic gully 218	1.4301	416659
600	570	630	600	70	200	ACO hygienic gully 218	1.4301	416666
600	570	930	900	70	200	ACO hygienic gully 218	1.4301	416667
600	570	1230	1200	70	200	ACO hygienic gully 218	1.4301	416668
800	770	830	800	80	200	ACO hygienic gully 218	1.4301	416672

Channel dimensions						Compatible with gully	materiaal	artikelnr.
Wo	Wi	Lo	Li	H2	D	Compatible with gully	materiaal	artikelnr.
200 mm	170 mm	530 mm	500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416590
200 mm	170 mm	830 mm	800 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416591
200 mm	170 mm	1030 mm	1000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416592
200 mm	170 mm	1230 mm	1200 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416593
200 mm	170 mm	1530 mm	1500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416594
200 mm	170 mm	2030 mm	2000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416595
300 mm	270 mm	330 mm	300 mm	55 mm	142 mm	ACO hygienic gully 157	1.4301	416614
300 mm	270 mm	630 mm	600 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416615
300 mm	270 mm	630 mm	600 mm	60 mm	142 mm	ACO hygienic gully 157	1.4404	416629
300 mm	270 mm	1030 mm	1000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416616
300 mm	270 mm	1530 mm	1500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416617
300 mm	270 mm	2030 mm	2000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416618
300 mm	270 mm	3030 mm	3000 mm	70 mm	142 mm	ACO hygienic gully 157	1.4301	416619
300 mm	270 mm	4030 mm	4000 mm	80 mm	142 mm	ACO hygienic gully 157	1.4301	416620
400 mm	370 mm	430 mm	400 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416642
400 mm	370 mm	630 mm	600 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416643
400 mm	370 mm	830 mm	800 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416644
500 mm	470 mm	530 mm	500 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416654
500 mm	470 mm	830 mm	800 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416655
500 mm	470 mm	1030 mm	1000 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416656
300 mm	270 mm	330 mm	300 mm	55 mm	200 mm	ACO hygienic gully 218	1.4301	416621
300 mm	270 mm	630 mm	600 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416622
300 mm	270 mm	1030 mm	1000 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416623
300 mm	270 mm	1530 mm	1500 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416624
300 mm	270 mm	2030 mm	2000 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416625
300 mm	270 mm	3030 mm	3000 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416626
300 mm	270 mm	4030 mm	4000 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416627
400 mm	370 mm	430 mm	400 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416645
400 mm	370 mm	630 mm	600 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416646
400 mm	370 mm	830 mm	800 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416647
500 mm	470 mm	530 mm	500 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416657
500 mm	470 mm	830 mm	800 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416658
500 mm	470 mm	1030 mm	1000 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416659
600 mm	570 mm	630 mm	600 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416666
600 mm	570 mm	930 mm	900 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416667
600 mm	570 mm	1230 mm	1200 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416668
800 mm	770 mm	830 mm	800 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416672

Browser niet ondersteund

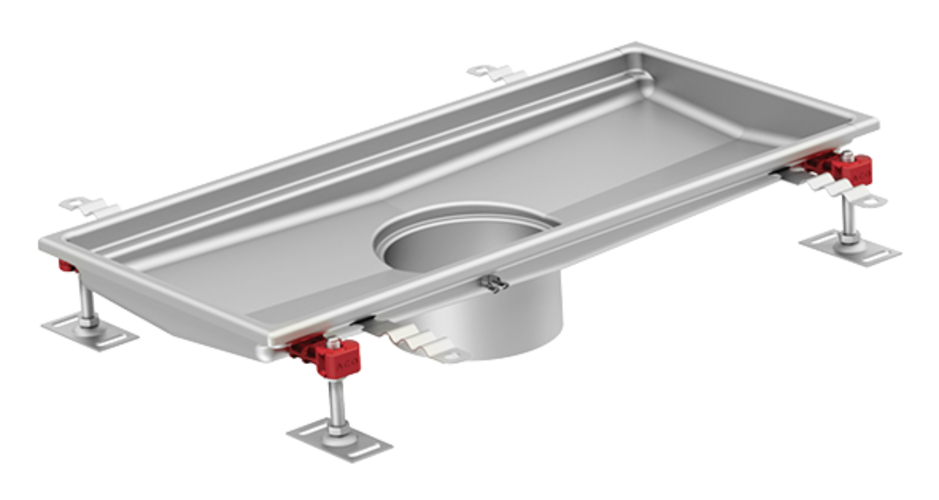

hygiënische roostergoot - standaard profiel zonder flens - hygiënisch ontwerp
