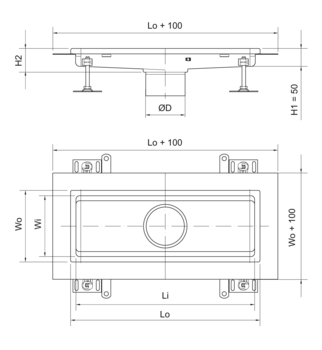

Channel dimensions						Compatible with gully	materiaal	artikelnr.
Wo	Wi	Lo	Li	H2	D
[mm]	[mm]	[mm]	[mm]	[mm]	[mm]
200	170	530	500	60	142	ACO hygienic gully 157	1.4301	416686
200	170	830	800	60	142	ACO hygienic gully 157	1.4301	416687
200	170	1030	1000	60	142	ACO hygienic gully 157	1.4301	416688
200	170	1230	1200	60	142	ACO hygienic gully 157	1.4301	416689
200	170	1530	1500	60	142	ACO hygienic gully 157	1.4301	416690
200	170	2030	2000	60	142	ACO hygienic gully 157	1.4301	416691
300	270	330	300	60	142	ACO hygienic gully 157	1.4301	416710
300	270	630	600	60	142	ACO hygienic gully 157	1.4301	416711
300	270	1030	1000	60	142	ACO hygienic gully 157	1.4301	416712
300	270	1530	1500	60	142	ACO hygienic gully 157	1.4301	416713
300	270	2030	2000	60	142	ACO hygienic gully 157	1.4301	416714
300	270	3030	3000	70	142	ACO hygienic gully 157	1.4301	416715
300	270	4030	4000	80	142	ACO hygienic gully 157	1.4301	416716
400	370	430	400	60	142	ACO hygienic gully 157	1.4301	416738
400	370	630	600	60	142	ACO hygienic gully 157	1.4301	416739
400	370	830	800	60	142	ACO hygienic gully 157	1.4301	416740
500	470	530	500	65	142	ACO hygienic gully 157	1.4301	416750
500	470	830	800	65	142	ACO hygienic gully 157	1.4301	416751
500	470	1030	1000	65	142	ACO hygienic gully 157	1.4301	416752
300	270	330	300	55	200	ACO hygienic gully 218	1.4301	416717
300	270	630	600	60	200	ACO hygienic gully 218	1.4301	416718
300	270	1030	1000	60	200	ACO hygienic gully 218	1.4301	416719
300	270	1530	1500	60	200	ACO hygienic gully 218	1.4301	416720
300	270	2030	2000	60	200	ACO hygienic gully 218	1.4301	416721
300	270	3030	3000	70	200	ACO hygienic gully 218	1.4301	416722
300	270	4030	4000	80	200	ACO hygienic gully 218	1.4301	416723
400	370	430	400	60	200	ACO hygienic gully 218	1.4301	416741
400	370	630	600	60	200	ACO hygienic gully 218	1.4301	416742
400	370	830	800	60	200	ACO hygienic gully 218	1.4301	416743
500	470	530	500	65	200	ACO hygienic gully 218	1.4301	416753
500	470	830	800	65	200	ACO hygienic gully 218	1.4301	416754
500	470	1030	1000	65	200	ACO hygienic gully 218	1.4301	416755
600	570	630	600	70	200	ACO hygienic gully 218	1.4301	416762
600	570	930	900	70	200	ACO hygienic gully 218	1.4301	416763
600	570	1230	1200	70	200	ACO hygienic gully 218	1.4301	416764
800	770	830	800	80	200	ACO hygienic gully 218	1.4301	416768

Channel dimensions						Compatible with gully	materiaal	artikelnr.
Wo	Wi	Lo	Li	H2	D	Compatible with gully	materiaal	artikelnr.
200 mm	170 mm	530 mm	500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416686
200 mm	170 mm	830 mm	800 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416687
200 mm	170 mm	1030 mm	1000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416688
200 mm	170 mm	1230 mm	1200 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416689
200 mm	170 mm	1530 mm	1500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416690
200 mm	170 mm	2030 mm	2000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416691
300 mm	270 mm	330 mm	300 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416710
300 mm	270 mm	630 mm	600 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416711
300 mm	270 mm	1030 mm	1000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416712
300 mm	270 mm	1530 mm	1500 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416713
300 mm	270 mm	2030 mm	2000 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416714
300 mm	270 mm	3030 mm	3000 mm	70 mm	142 mm	ACO hygienic gully 157	1.4301	416715
300 mm	270 mm	4030 mm	4000 mm	80 mm	142 mm	ACO hygienic gully 157	1.4301	416716
400 mm	370 mm	430 mm	400 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416738
400 mm	370 mm	630 mm	600 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416739
400 mm	370 mm	830 mm	800 mm	60 mm	142 mm	ACO hygienic gully 157	1.4301	416740
500 mm	470 mm	530 mm	500 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416750
500 mm	470 mm	830 mm	800 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416751
500 mm	470 mm	1030 mm	1000 mm	65 mm	142 mm	ACO hygienic gully 157	1.4301	416752
300 mm	270 mm	330 mm	300 mm	55 mm	200 mm	ACO hygienic gully 218	1.4301	416717
300 mm	270 mm	630 mm	600 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416718
300 mm	270 mm	1030 mm	1000 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416719
300 mm	270 mm	1530 mm	1500 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416720
300 mm	270 mm	2030 mm	2000 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416721
300 mm	270 mm	3030 mm	3000 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416722
300 mm	270 mm	4030 mm	4000 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416723
400 mm	370 mm	430 mm	400 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416741
400 mm	370 mm	630 mm	600 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416742
400 mm	370 mm	830 mm	800 mm	60 mm	200 mm	ACO hygienic gully 218	1.4301	416743
500 mm	470 mm	530 mm	500 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416753
500 mm	470 mm	830 mm	800 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416754
500 mm	470 mm	1030 mm	1000 mm	65 mm	200 mm	ACO hygienic gully 218	1.4301	416755
600 mm	570 mm	630 mm	600 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416762
600 mm	570 mm	930 mm	900 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416763
600 mm	570 mm	1230 mm	1200 mm	70 mm	200 mm	ACO hygienic gully 218	1.4301	416764
800 mm	770 mm	830 mm	800 mm	80 mm	200 mm	ACO hygienic gully 218	1.4301	416768

Browser niet ondersteund

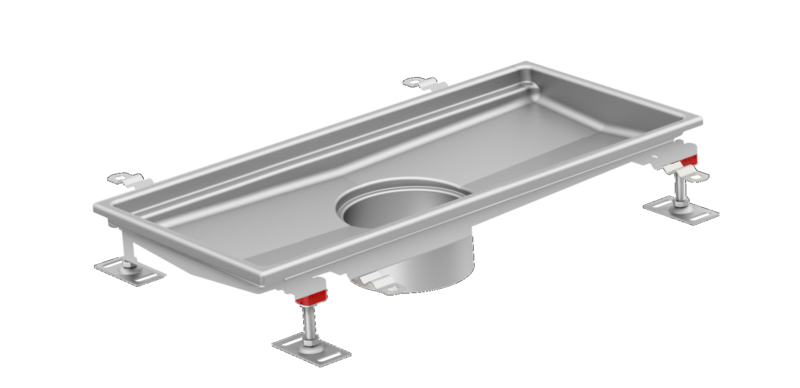

hygiënische roostergoot - goten - standaard profiel zonder flens - hygiënisch ontwerp - verbreedde rand

ACO trechter - draagbaar

Geschikt voor

Beschrijving

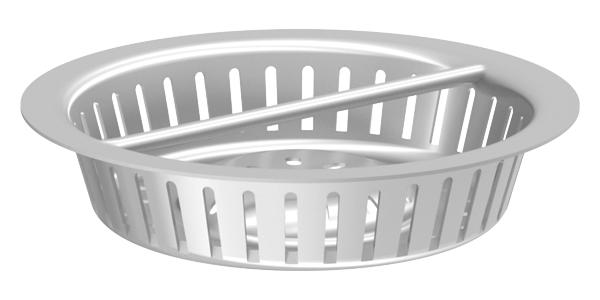

Zeefemmer

Geschikt voor

Beschrijving

Zeefemmer

Geschikt voor

Beschrijving

Zeefemmer

Geschikt voor

Zeefemmer

Geschikt voor

Zeefemmer

Geschikt voor

Beschrijving

Zeefemmer

Geschikt voor

Beschrijving

Zeefemmer

Geschikt voor

Beschrijving

Zeefemmer

Geschikt voor

Beschrijving
